TEncPic Class Reference

Picture class including local image characteristics information for QP adaptation. More...

#include <TEncPic.h>

Inheritance diagram for TEncPic:

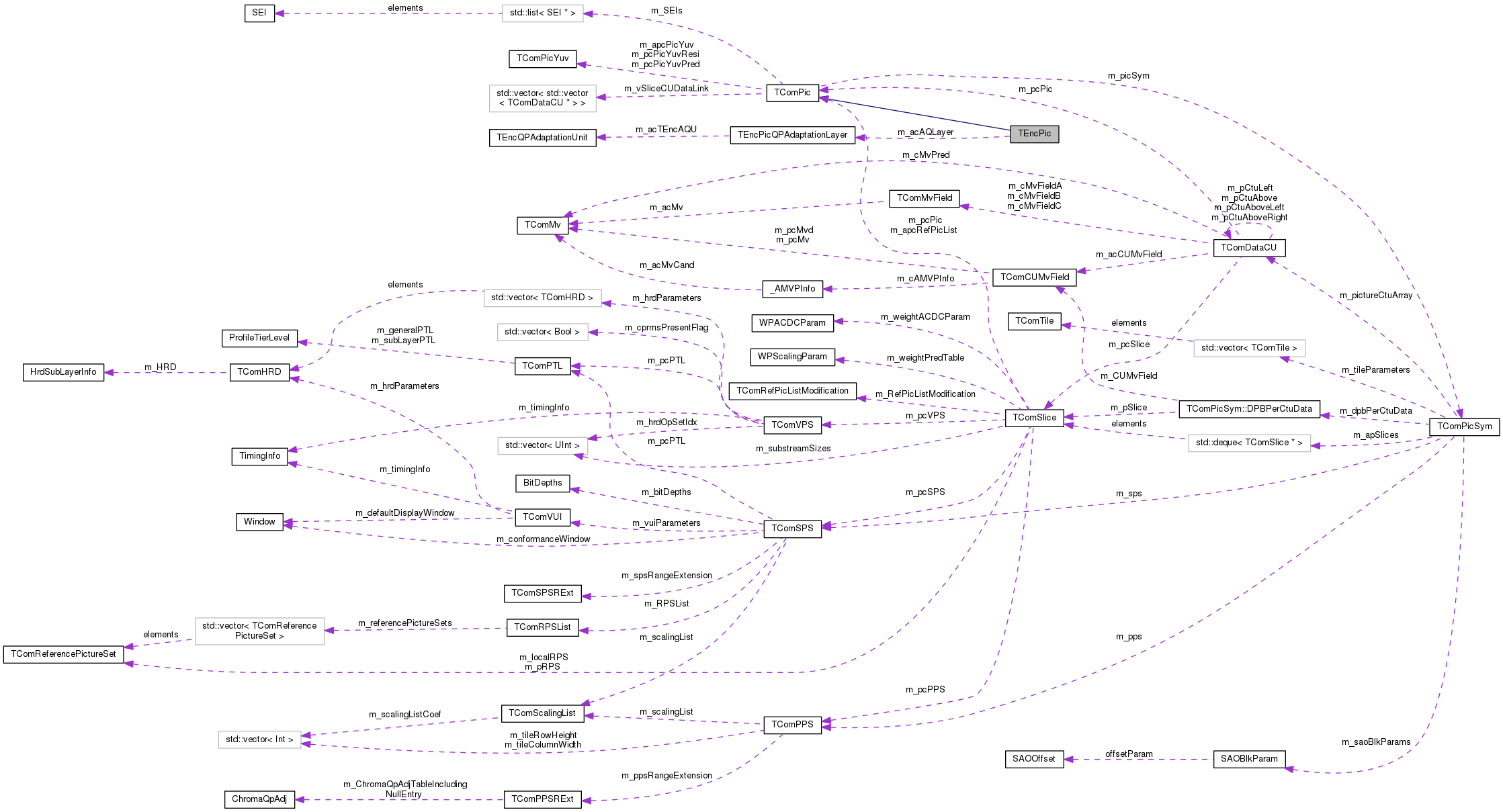

Collaboration diagram for TEncPic:

Public Member Functions
TEncPicQPAdaptationLayer *	getAQLayer (UInt uiDepth)
UInt	getMaxAQDepth ()
	TEncPic ()
virtual	~TEncPic ()
Void	create (const TComSPS &sps, const TComPPS &pps, UInt uiMaxAdaptiveQPDepth)
virtual Void	destroy ()
	Clean up. More...
Public Member Functions inherited from TComPic
TComPicYuv *	getPicYuvTrueOrg ()
UInt	getTLayer () const
Void	setTLayer (UInt uiTLayer)
Bool	getUsedByCurr () const
Void	setUsedByCurr (Bool bUsed)
Bool	getIsLongTerm () const
Void	setIsLongTerm (Bool lt)
Void	setCheckLTMSBPresent (Bool b)
Bool	getCheckLTMSBPresent ()
TComPicSym *	getPicSym ()
const TComPicSym *	getPicSym () const
TComSlice *	getSlice (Int i)
const TComSlice *	getSlice (Int i) const
Int	getPOC () const
TComDataCU *	getCtu (UInt ctuRsAddr)
const TComDataCU *	getCtu (UInt ctuRsAddr) const
TComPicYuv *	getPicYuvOrg ()
TComPicYuv *	getPicYuvRec ()
TComPicYuv *	getPicYuvPred ()
TComPicYuv *	getPicYuvResi ()
Void	setPicYuvPred (TComPicYuv *pcPicYuv)
Void	setPicYuvResi (TComPicYuv *pcPicYuv)
UInt	getNumberOfCtusInFrame () const
UInt	getNumPartInCtuWidth () const
UInt	getNumPartInCtuHeight () const
UInt	getNumPartitionsInCtu () const
UInt	getFrameWidthInCtus () const
UInt	getFrameHeightInCtus () const
UInt	getMinCUWidth () const
UInt	getMinCUHeight () const
Int	getStride (const ComponentID id) const
Int	getComponentScaleX (const ComponentID id) const
Int	getComponentScaleY (const ComponentID id) const
ChromaFormat	getChromaFormat () const
Int	getNumberValidComponents () const
Void	setReconMark (Bool b)
Bool	getReconMark () const
Void	setOutputMark (Bool b)
Bool	getOutputMark () const
UInt	getCurrSliceIdx () const
Void	setCurrSliceIdx (UInt i)
UInt	getNumAllocatedSlice () const
Void	allocateNewSlice ()
Void	clearSliceBuffer ()
const Window &	getConformanceWindow () const
Window	getDefDisplayWindow () const
Void	setTopField (Bool b)
Bool	isTopField ()
Void	setField (Bool b)
Bool	isField () const
Void	setSEIs (SEIMessages &seis)
SEIMessages &	getSEIs ()
const SEIMessages &	getSEIs () const
	TComPic ()
virtual	~TComPic ()
Void	create (const TComSPS &sps, const TComPPS &pps, const Bool bCreateEncoderSourcePicYuv, const Bool bCreateForImmediateReconstruction)
Void	prepareForEncoderSourcePicYuv ()
Void	prepareForReconstruction ()
Void	releaseReconstructionIntermediateData ()
Void	releaseAllReconstructionData ()
Void	releaseEncoderSourceImageData ()
Void	compressMotion ()
Bool	getSAOMergeAvailability (Int currAddr, Int mergeAddr)
UInt	getSubstreamForCtuAddr (const UInt ctuAddr, const Bool bAddressInRaster, TComSlice *pcSlice)

Private Attributes
TEncPicQPAdaptationLayer *	m_acAQLayer
UInt	m_uiMaxAQDepth

Additional Inherited Members
Public Types inherited from TComPic
enum	PIC_YUV_T { PIC_YUV_ORG =0, PIC_YUV_REC =1, PIC_YUV_TRUE_ORG =2, NUM_PIC_YUV =3 }

Detailed Description

Picture class including local image characteristics information for QP adaptation.

Definition at line 95 of file TEncPic.h.

Constructor & Destructor Documentation

TEncPic::TEncPic

(

)

Constructor

Definition at line 105 of file TEncPic.cpp.

TEncPic::~TEncPic ( )

virtual

Destructor

Definition at line 113 of file TEncPic.cpp.

Member Function Documentation

Void TEncPic::create	(	const TComSPS &	sps,
		const TComPPS &	pps,
		UInt	uiMaxAdaptiveQPDepth
	)

Initialize member variables

Parameters

sps	reference to used SPS
pps	reference to used PPS
uiMaxAdaptiveQPDepth	Maximum depth of unit block for assigning QP adaptive to local image characteristics
bIsVirtual

Definition at line 125 of file TEncPic.cpp.

Void TEncPic::destroy ( )

virtual

Clean up.

Reimplemented from TComPic.

Definition at line 149 of file TEncPic.cpp.

TEncPicQPAdaptationLayer* TEncPic::getAQLayer ( UInt  uiDepth )

inline

Definition at line 112 of file TEncPic.h.

UInt TEncPic::getMaxAQDepth ( )

inline

Definition at line 113 of file TEncPic.h.

Member Data Documentation

TEncPicQPAdaptationLayer* TEncPic::m_acAQLayer

private

Definition at line 98 of file TEncPic.h.

UInt TEncPic::m_uiMaxAQDepth

private

Definition at line 99 of file TEncPic.h.

---

The documentation for this class was generated from the following files:

• Lib/TLibEncoder/TEncPic.h
• Lib/TLibEncoder/TEncPic.cpp
