TEncCu Class Reference

CU encoder class. More...

#include <TEncCu.h>

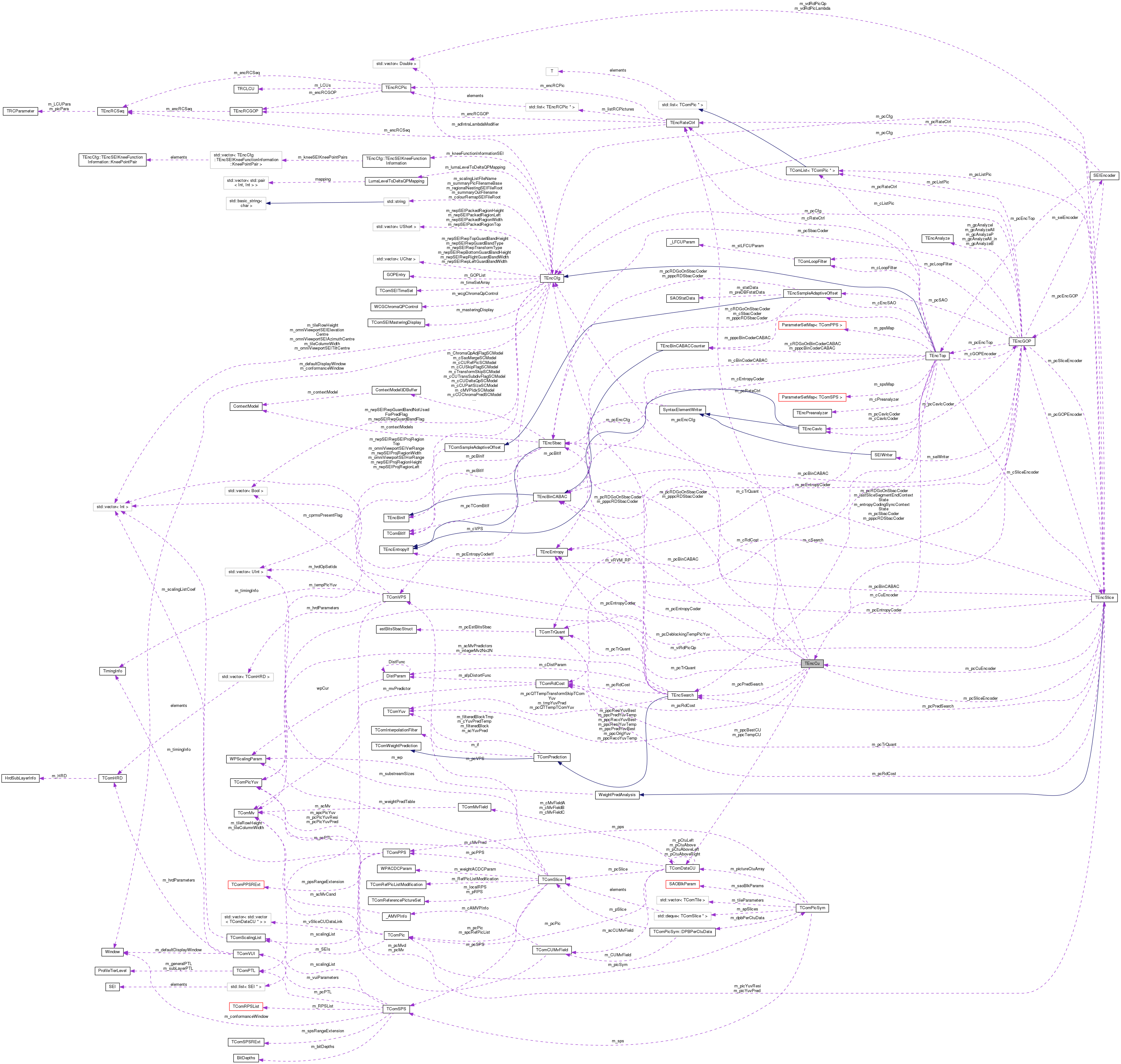

Collaboration diagram for TEncCu:

Public Member Functions
Void	setSliceEncoder (TEncSlice *pSliceEncoder)
TEncSlice *	getSliceEncoder ()
Void	setFastDeltaQp (Bool b)

Protected Member Functions
Bool	getdQPFlag ()
Void	setdQPFlag (Bool b)
Bool	getFastDeltaQp () const
Bool	getCodeChromaQpAdjFlag ()
Void	setCodeChromaQpAdjFlag (Bool b)

Private Attributes
TComDataCU **	m_ppcBestCU
	Best CUs in each depth. More...
TComDataCU **	m_ppcTempCU
	Temporary CUs in each depth. More...
UChar	m_uhTotalDepth
TComYuv **	m_ppcPredYuvBest
	Best Prediction Yuv for each depth. More...
TComYuv **	m_ppcResiYuvBest
	Best Residual Yuv for each depth. More...
TComYuv **	m_ppcRecoYuvBest
	Best Reconstruction Yuv for each depth. More...
TComYuv **	m_ppcPredYuvTemp
	Temporary Prediction Yuv for each depth. More...
TComYuv **	m_ppcResiYuvTemp
	Temporary Residual Yuv for each depth. More...
TComYuv **	m_ppcRecoYuvTemp
	Temporary Reconstruction Yuv for each depth. More...
TComYuv **	m_ppcOrigYuv
	Original Yuv for each depth. More...
Bool	m_bEncodeDQP
Bool	m_bFastDeltaQP
Bool	m_stillToCodeChromaQpOffsetFlag
Int	m_cuChromaQpOffsetIdxPlus1
Int	m_lumaLevelToDeltaQPLUT [LUMA_LEVEL_TO_DQP_LUT_MAXSIZE]
Int	m_lumaQPOffset
TEncSlice *	m_pcSliceEncoder
TEncCfg *	m_pcEncCfg
TEncSearch *	m_pcPredSearch
TComTrQuant *	m_pcTrQuant
TComRdCost *	m_pcRdCost
TEncEntropy *	m_pcEntropyCoder
TEncBinCABAC *	m_pcBinCABAC
TEncSbac ***	m_pppcRDSbacCoder
TEncSbac *	m_pcRDGoOnSbacCoder
TEncRateCtrl *	m_pcRateCtrl
Void	init (TEncTop *pcEncTop)
	copy parameters from encoder class More...
Void	initLumaDeltaQpLUT ()
Int	calculateLumaDQP (TComDataCU *pCU, const UInt absPartIdx, const TComYuv *pOrgYuv)
Void	create (UChar uhTotalDepth, UInt iMaxWidth, UInt iMaxHeight, ChromaFormat chromaFormat)
	create internal buffers More...
Void	destroy ()
	destroy internal buffers More...
Void	compressCtu (TComDataCU *pCtu)
	CTU analysis function. More...
Void	encodeCtu (TComDataCU *pCtu)
	CTU encoding function. More...
Int	updateCtuDataISlice (TComDataCU *pCtu, Int width, Int height)
Void	finishCU (TComDataCU *pcCU, UInt uiAbsPartIdx)
Void	xCompressCU (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU, const UInt uiDepth, PartSize eParentPartSize=NUMBER_OF_PART_SIZES)
Void	xEncodeCU (TComDataCU *pcCU, UInt uiAbsPartIdx, UInt uiDepth)
Int	xComputeQP (TComDataCU *pcCU, UInt uiDepth)
Void	xCheckBestMode (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU, UInt uiDepth)
Void	xCheckRDCostMerge2Nx2N (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU, Bool *earlyDetectionSkipMode)
Void	xCheckRDCostInter (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU, PartSize ePartSize, Bool bUseMRG=false)
Void	xCheckRDCostIntra (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU, PartSize ePartSize)
Void	xCheckDQP (TComDataCU *pcCU)
Void	xCheckIntraPCM (TComDataCU *&rpcBestCU, TComDataCU *&rpcTempCU)
Void	xCopyAMVPInfo (AMVPInfo *pSrc, AMVPInfo *pDst)
Void	xCopyYuv2Pic (TComPic *rpcPic, UInt uiCUAddr, UInt uiAbsPartIdx, UInt uiDepth, UInt uiSrcDepth)
Void	xCopyYuv2Tmp (UInt uhPartUnitIdx, UInt uiDepth)
Void	xCtuCollectARLStats (TComDataCU *pCtu)
	Collect ARL statistics from one CTU. More...
Int	xTuCollectARLStats (TCoeff *rpcCoeff, TCoeff *rpcArlCoeff, Int NumCoeffInCU, Double *cSum, UInt *numSamples)
Void	deriveTestModeAMP (TComDataCU *pcBestCU, PartSize eParentPartSize, Bool &bTestAMP_Hor, Bool &bTestAMP_Ver, Bool &bTestMergeAMP_Hor, Bool &bTestMergeAMP_Ver)
	Derive small set of test modes for AMP encoder speed-up. More...
Void	xFillPCMBuffer (TComDataCU *pCU, TComYuv *pOrgYuv)

Detailed Description

CU encoder class.

Definition at line 65 of file TEncCu.h.

Member Function Documentation

Int TEncCu::calculateLumaDQP	(	TComDataCU *	pCU,
		const UInt	absPartIdx,
		const TComYuv *	pOrgYuv
	)

Definition at line 299 of file TEncCu.cpp.

Void TEncCu::compressCtu

(

TComDataCU *

pCtu

)

CTU analysis function.

Parameters

pCtu	pointer of CU data class

Definition at line 231 of file TEncCu.cpp.

Void TEncCu::deriveTestModeAMP ( TComDataCU *  pcBestCU, PartSize  eParentPartSize, Bool &  bTestAMP_Hor, Bool &  bTestAMP_Ver, Bool &  bTestMergeAMP_Hor, Bool &  bTestMergeAMP_Ver  )

protected

Derive small set of test modes for AMP encoder speed-up.

Utilizing the partition size of parent PU

if parent is intra

Definition at line 360 of file TEncCu.cpp.

Void TEncCu::destroy

(

)

destroy internal buffers

Definition at line 113 of file TEncCu.cpp.

Void TEncCu::encodeCtu

(

TComDataCU *

pCtu

)

CTU encoding function.

Parameters

pCtu	pointer of CU data class

Definition at line 255 of file TEncCu.cpp.

Void TEncCu::finishCU ( TComDataCU *  pcCU, UInt  uiAbsPartIdx  )

protected

finish encoding a cu and handle end-of-slice conditions

Parameters

pcCU
uiAbsPartIdx
uiDepth

Returns

Void

Definition at line 1012 of file TEncCu.cpp.

Bool TEncCu::getCodeChromaQpAdjFlag ( )

inlineprotected

Definition at line 167 of file TEncCu.h.

Bool TEncCu::getdQPFlag ( )

inlineprotected

Definition at line 162 of file TEncCu.h.

Bool TEncCu::getFastDeltaQp ( ) const

inlineprotected

Definition at line 165 of file TEncCu.h.

TEncSlice* TEncCu::getSliceEncoder ( )

inline

Definition at line 109 of file TEncCu.h.

Void TEncCu::init

(

TEncTop *

pcEncTop

)

copy parameters from encoder class

Parameters

pcEncTop

pointer of encoder class

Definition at line 206 of file TEncCu.cpp.

Void TEncCu::initLumaDeltaQpLUT

(

)

Definition at line 275 of file TEncCu.cpp.

Void TEncCu::setCodeChromaQpAdjFlag ( Bool  b )

inlineprotected

Definition at line 168 of file TEncCu.h.

Void TEncCu::setdQPFlag ( Bool  b )

inlineprotected

Definition at line 163 of file TEncCu.h.

Void TEncCu::setFastDeltaQp ( Bool  b )

inline

Definition at line 127 of file TEncCu.h.

Void TEncCu::setSliceEncoder ( TEncSlice *  pSliceEncoder )

inline

Definition at line 108 of file TEncCu.h.

Int TEncCu::updateCtuDataISlice	(	TComDataCU *	pCtu,
		Int	width,
		Int	height
	)

Definition at line 1267 of file TEncCu.cpp.

Void TEncCu::xCheckBestMode ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU, UInt  uiDepth  )

protected

check whether current try is the best with identifying the depth of current try

Parameters

rpcBestCU
rpcTempCU
uiDepth

Definition at line 1631 of file TEncCu.cpp.

Void TEncCu::xCheckDQP ( TComDataCU *  pcCU )

protected

Definition at line 1671 of file TEncCu.cpp.

Void TEncCu::xCheckIntraPCM ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU  )

protected

Check R-D costs for a CU with PCM mode.

Parameters

rpcBestCU	pointer to best mode CU data structure
rpcTempCU	pointer to testing mode CU data structure

Returns

Void

Note

Current PCM implementation encodes sample values in a lossless way. The distortion of PCM mode CUs are zero. PCM mode is selected if the best mode yields bits greater than that of PCM mode.

Definition at line 1575 of file TEncCu.cpp.

Void TEncCu::xCheckRDCostInter ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU, PartSize  ePartSize, Bool  bUseMRG = false  )

protected

Definition at line 1440 of file TEncCu.cpp.

Void TEncCu::xCheckRDCostIntra ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU, PartSize  ePartSize  )

protected

Definition at line 1500 of file TEncCu.cpp.

Void TEncCu::xCheckRDCostMerge2Nx2N ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU, Bool *  earlyDetectionSkipMode  )

protected

check RD costs for a CU block encoded with merge

Parameters

rpcBestCU
rpcTempCU
earlyDetectionSkipMode

Definition at line 1293 of file TEncCu.cpp.

Void TEncCu::xCompressCU ( TComDataCU *&  rpcBestCU, TComDataCU *&  rpcTempCU, const UInt  uiDepth, PartSize  eParentPartSize = NUMBER_OF_PART_SIZES  )

protected

Compress a CU block recursively with enabling sub-CTU-level delta QP

• for loop of QP value to compress the current CU with all possible QP

Try AMP (SIZE_2NxnU, SIZE_2NxnD, SIZE_nLx2N, SIZE_nRx2N)

Do horizontal AMP

Do horizontal AMP

Definition at line 435 of file TEncCu.cpp.

Int TEncCu::xComputeQP ( TComDataCU *  pcCU, UInt  uiDepth  )

protected

Compute QP for each CU

Parameters

pcCU	Target CU
uiDepth	CU depth

Returns

quantization parameter

Definition at line 1036 of file TEncCu.cpp.

Void TEncCu::xCopyAMVPInfo ( AMVPInfo *  pSrc, AMVPInfo *  pDst  )

protected

Definition at line 1693 of file TEncCu.cpp.

Void TEncCu::xCopyYuv2Pic ( TComPic *  rpcPic, UInt  uiCUAddr, UInt  uiAbsPartIdx, UInt  uiDepth, UInt  uiSrcDepth  )

protected

Definition at line 1701 of file TEncCu.cpp.

Void TEncCu::xCopyYuv2Tmp ( UInt  uhPartUnitIdx, UInt  uiDepth  )

protected

Definition at line 1714 of file TEncCu.cpp.

Void TEncCu::xCtuCollectARLStats ( TComDataCU *  pCtu )

protected

Collect ARL statistics from one CTU.

Definition at line 1783 of file TEncCu.cpp.

Void TEncCu::xEncodeCU ( TComDataCU *  pcCU, UInt  uiAbsPartIdx, UInt  uiDepth  )

protected

encode a CU block recursively

Parameters

pcCU
uiAbsPartIdx
uiDepth

Returns

Void

Definition at line 1067 of file TEncCu.cpp.

Void TEncCu::xFillPCMBuffer ( TComDataCU *  pCU, TComYuv *  pOrgYuv  )

protected

Function for filling the PCM buffer of a CU using its original sample array

Parameters

pCU	pointer to current CU
pOrgYuv	pointer to original sample array

Definition at line 1725 of file TEncCu.cpp.

Int TEncCu::xTuCollectARLStats ( TCoeff *  rpcCoeff, TCoeff *  rpcArlCoeff, Int  NumCoeffInCU, Double *  cSum, UInt *  numSamples  )

protected

Collect ARL statistics from one block

Definition at line 1757 of file TEncCu.cpp.

Member Data Documentation

Bool TEncCu::m_bEncodeDQP

private

Definition at line 82 of file TEncCu.h.

Bool TEncCu::m_bFastDeltaQP

private

Definition at line 83 of file TEncCu.h.

Int TEncCu::m_cuChromaQpOffsetIdxPlus1

private

Definition at line 85 of file TEncCu.h.

Int TEncCu::m_lumaLevelToDeltaQPLUT[LUMA_LEVEL_TO_DQP_LUT_MAXSIZE]

private

Definition at line 86 of file TEncCu.h.

Int TEncCu::m_lumaQPOffset

private

Definition at line 87 of file TEncCu.h.

TEncBinCABAC* TEncCu::m_pcBinCABAC

private

Definition at line 97 of file TEncCu.h.

TEncCfg* TEncCu::m_pcEncCfg

private

Definition at line 91 of file TEncCu.h.

TEncEntropy* TEncCu::m_pcEntropyCoder

private

Definition at line 96 of file TEncCu.h.

TEncSearch* TEncCu::m_pcPredSearch

private

Definition at line 92 of file TEncCu.h.

TEncRateCtrl* TEncCu::m_pcRateCtrl

private

Definition at line 102 of file TEncCu.h.

TComRdCost* TEncCu::m_pcRdCost

private

Definition at line 94 of file TEncCu.h.

TEncSbac* TEncCu::m_pcRDGoOnSbacCoder

private

Definition at line 101 of file TEncCu.h.

TEncSlice* TEncCu::m_pcSliceEncoder

private

Definition at line 88 of file TEncCu.h.

TComTrQuant* TEncCu::m_pcTrQuant

private

Definition at line 93 of file TEncCu.h.

TComDataCU** TEncCu::m_ppcBestCU

private

Best CUs in each depth.

Definition at line 69 of file TEncCu.h.

TComYuv** TEncCu::m_ppcOrigYuv

private

Original Yuv for each depth.

Definition at line 79 of file TEncCu.h.

TComYuv** TEncCu::m_ppcPredYuvBest

private

Best Prediction Yuv for each depth.

Definition at line 73 of file TEncCu.h.

TComYuv** TEncCu::m_ppcPredYuvTemp

private

Temporary Prediction Yuv for each depth.

Definition at line 76 of file TEncCu.h.

TComYuv** TEncCu::m_ppcRecoYuvBest

private

Best Reconstruction Yuv for each depth.

Definition at line 75 of file TEncCu.h.

TComYuv** TEncCu::m_ppcRecoYuvTemp

private

Temporary Reconstruction Yuv for each depth.

Definition at line 78 of file TEncCu.h.

TComYuv** TEncCu::m_ppcResiYuvBest

private

Best Residual Yuv for each depth.

Definition at line 74 of file TEncCu.h.

TComYuv** TEncCu::m_ppcResiYuvTemp

private

Temporary Residual Yuv for each depth.

Definition at line 77 of file TEncCu.h.

TComDataCU** TEncCu::m_ppcTempCU

private

Temporary CUs in each depth.

Definition at line 70 of file TEncCu.h.

TEncSbac*** TEncCu::m_pppcRDSbacCoder

private

Definition at line 100 of file TEncCu.h.

Bool TEncCu::m_stillToCodeChromaQpOffsetFlag

private

Definition at line 84 of file TEncCu.h.

UChar TEncCu::m_uhTotalDepth

private

Definition at line 71 of file TEncCu.h.

---

The documentation for this class was generated from the following files:

• Lib/TLibEncoder/TEncCu.h
• Lib/TLibEncoder/TEncCu.cpp
