SEITempMotionConstrainedTileSets Class Reference

#include <SEI.h>

Inheritance diagram for SEITempMotionConstrainedTileSets:
Inheritance graph
[legend]

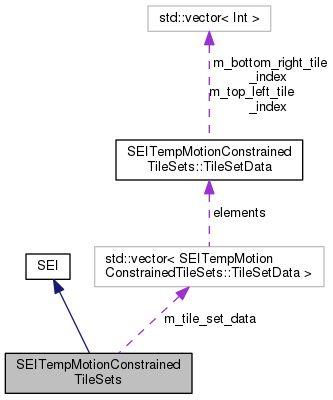

Collaboration diagram for SEITempMotionConstrainedTileSets:
Collaboration graph
[legend]

Classes

class  TileSetData


Public Member Functions

PayloadType payloadType () const

 SEITempMotionConstrainedTileSets ()

virtual ~SEITempMotionConstrainedTileSets ()

Void setNumberOfTileSets (const Int number)

Int getNumberOfTileSets () const

TileSetDatatileSetData (const Int index)

const TileSetDatatileSetData (const Int index) const

- Public Member Functions inherited from SEI
 SEI ()

virtual ~SEI ()


Public Attributes

Bool m_mc_all_tiles_exact_sample_value_match_flag

Bool m_each_tile_one_tile_set_flag

Bool m_limited_tile_set_display_flag

Bool m_max_mcs_tier_level_idc_present_flag

Bool m_max_mcts_tier_flag

Int m_max_mcts_level_idc


Protected Attributes

std::vector< TileSetDatam_tile_set_data


Additional Inherited Members

- Public Types inherited from SEI
enum  PayloadType {
  BUFFERING_PERIOD = 0, PICTURE_TIMING = 1, PAN_SCAN_RECT = 2, FILLER_PAYLOAD = 3,
  USER_DATA_REGISTERED_ITU_T_T35 = 4, USER_DATA_UNREGISTERED = 5, RECOVERY_POINT = 6, SCENE_INFO = 9,
  PICTURE_SNAPSHOT = 15, PROGRESSIVE_REFINEMENT_SEGMENT_START = 16, PROGRESSIVE_REFINEMENT_SEGMENT_END = 17, FILM_GRAIN_CHARACTERISTICS = 19,
  POST_FILTER_HINT = 22, TONE_MAPPING_INFO = 23, FRAME_PACKING = 45, DISPLAY_ORIENTATION = 47,
  GREEN_METADATA = 56, SOP_DESCRIPTION = 128, ACTIVE_PARAMETER_SETS = 129, DECODING_UNIT_INFO = 130,
  TEMPORAL_LEVEL0_INDEX = 131, DECODED_PICTURE_HASH = 132, SCALABLE_NESTING = 133, REGION_REFRESH_INFO = 134,
  NO_DISPLAY = 135, TIME_CODE = 136, MASTERING_DISPLAY_COLOUR_VOLUME = 137, SEGM_RECT_FRAME_PACKING = 138,
  TEMP_MOTION_CONSTRAINED_TILE_SETS = 139, CHROMA_RESAMPLING_FILTER_HINT = 140, KNEE_FUNCTION_INFO = 141, COLOUR_REMAPPING_INFO = 142,
  DEINTERLACE_FIELD_IDENTIFICATION = 143, CONTENT_LIGHT_LEVEL_INFO = 144, DEPENDENT_RAP_INDICATION = 145, CODED_REGION_COMPLETION = 146,
  ALTERNATIVE_TRANSFER_CHARACTERISTICS = 147, AMBIENT_VIEWING_ENVIRONMENT = 148, CONTENT_COLOUR_VOLUME = 149, EQUIRECTANGULAR_PROJECTION = 150,
  SPHERE_ROTATION = 154, OMNI_VIEWPORT = 156, CUBEMAP_PROJECTION = 151, REGION_WISE_PACKING = 155,
  REGIONAL_NESTING = 157
}

- Static Public Member Functions inherited from SEI
static const TChargetSEIMessageString (SEI::PayloadType payloadType)


Detailed Description

Definition at line 666 of file SEI.h.

Constructor & Destructor Documentation

SEITempMotionConstrainedTileSets::SEITempMotionConstrainedTileSets ( )
inline

Definition at line 714 of file SEI.h.

virtual SEITempMotionConstrainedTileSets::~SEITempMotionConstrainedTileSets ( )
inlinevirtual

Definition at line 715 of file SEI.h.

Member Function Documentation

Int SEITempMotionConstrainedTileSets::getNumberOfTileSets ( ) const
inline

Definition at line 718 of file SEI.h.

PayloadType SEITempMotionConstrainedTileSets::payloadType ( ) const
inlinevirtual

Implements SEI.

Definition at line 713 of file SEI.h.

Void SEITempMotionConstrainedTileSets::setNumberOfTileSets ( const Int  number)
inline

Definition at line 717 of file SEI.h.

TileSetData& SEITempMotionConstrainedTileSets::tileSetData ( const Int  index)
inline

Definition at line 720 of file SEI.h.

const TileSetData& SEITempMotionConstrainedTileSets::tileSetData ( const Int  index) const
inline

Definition at line 721 of file SEI.h.

Member Data Documentation

Bool SEITempMotionConstrainedTileSets::m_each_tile_one_tile_set_flag

Definition at line 707 of file SEI.h.

Bool SEITempMotionConstrainedTileSets::m_limited_tile_set_display_flag

Definition at line 708 of file SEI.h.

Bool SEITempMotionConstrainedTileSets::m_max_mcs_tier_level_idc_present_flag

Definition at line 709 of file SEI.h.

Int SEITempMotionConstrainedTileSets::m_max_mcts_level_idc

Definition at line 711 of file SEI.h.

Bool SEITempMotionConstrainedTileSets::m_max_mcts_tier_flag

Definition at line 710 of file SEI.h.

Bool SEITempMotionConstrainedTileSets::m_mc_all_tiles_exact_sample_value_match_flag

Definition at line 706 of file SEI.h.

std::vector<TileSetData> SEITempMotionConstrainedTileSets::m_tile_set_data
protected

Definition at line 702 of file SEI.h.


The documentation for this class was generated from the following file:
